Q8513FD Hot Sale Large Inflatable Pvdf Membrane Structure Padel Court Covers air Inflated Structure Tennis Court air Domes

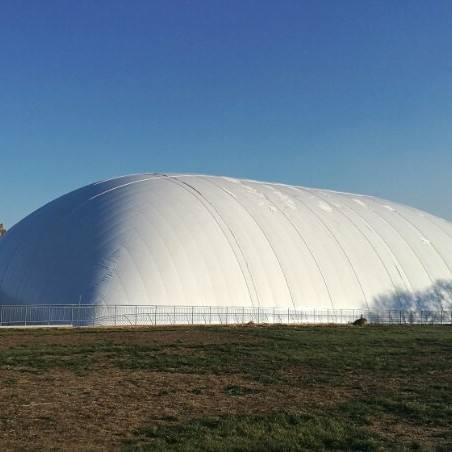

This air dome uses air pressure to support the membrane surface eliminating the need for beams and columns inside, thus easily achieving large-space constructions. Compared to traditional sports venues, pneumatic membrane structure have advantages such as lower construction costs, higher space utilization, simple maintenance, and the ability to be relocated multiple times. For fitness enthusiasts, the indoor venue offers protection from wind and sun, as well as insulation, meaning that exercising and playing sports no longer depend on the weather.

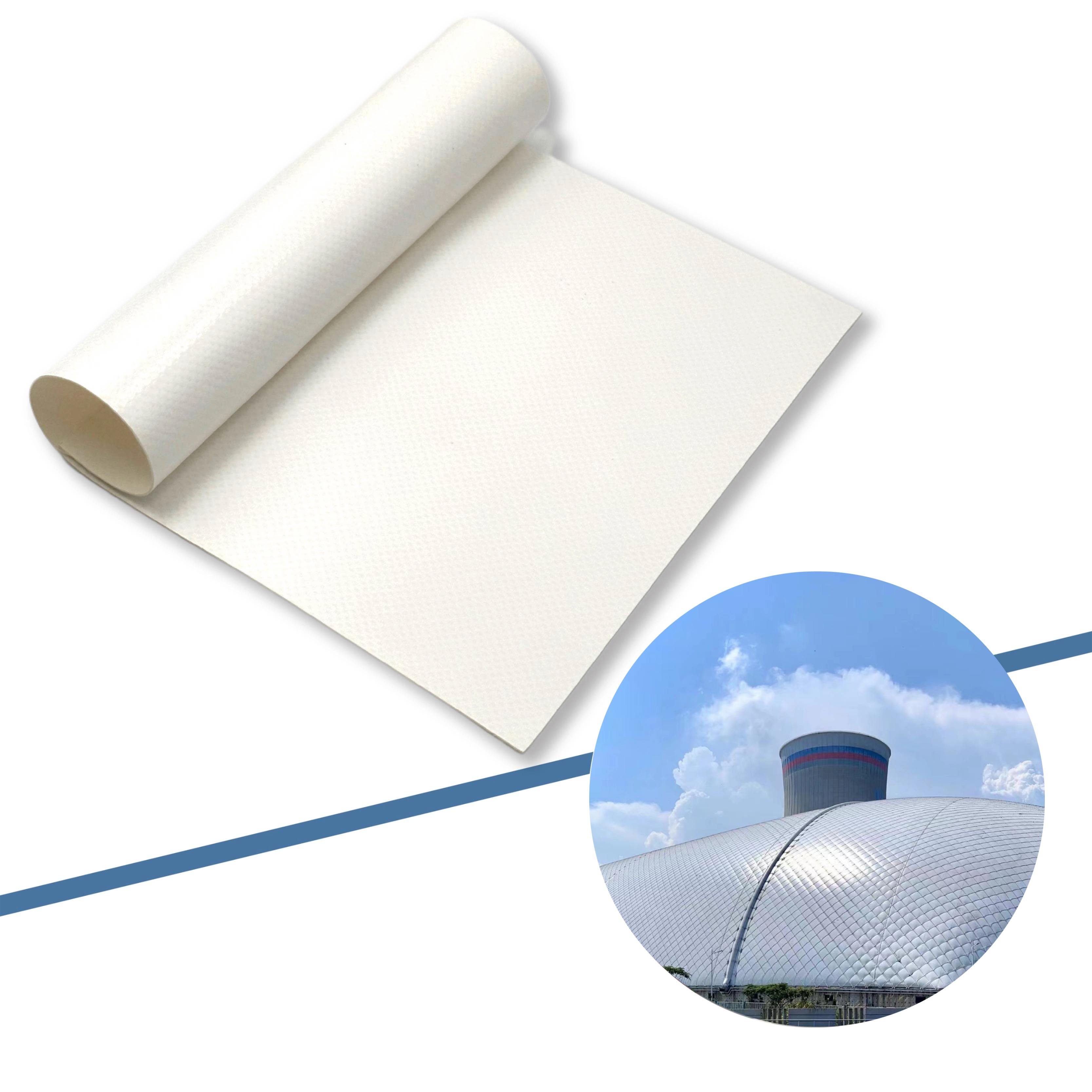

This air dome is made of durable, waterproof, and flame-resistant PVC tarpaulin, ensuring long-term use in various weather conditions. Certified by CE, it complies with EU safety standards, providing market access and regulatory assurance. The air dome is customizable in size, color, and logo, making it versatile for sports, events, and commercial uses.


P8513FD Technical Data
ItemUnitDateTest Method
Widthm1.5ISO 22198
Weightg/㎡1350±50DIN EN ISO 2286
Thicknessmm1.08±0.05DIN EN ISO 2286
TensileN/5cm8500/8000DIN 53354
TearN1000/1000DIN EN 17679
AdhesionN/5cm>120DIN 55543
Transmissivity%0/6±3FZ/T 01009
FRB1EN 13501-1
Temperature-30~+70in static position
Anti-wickingmm≤20FZ/T 01071

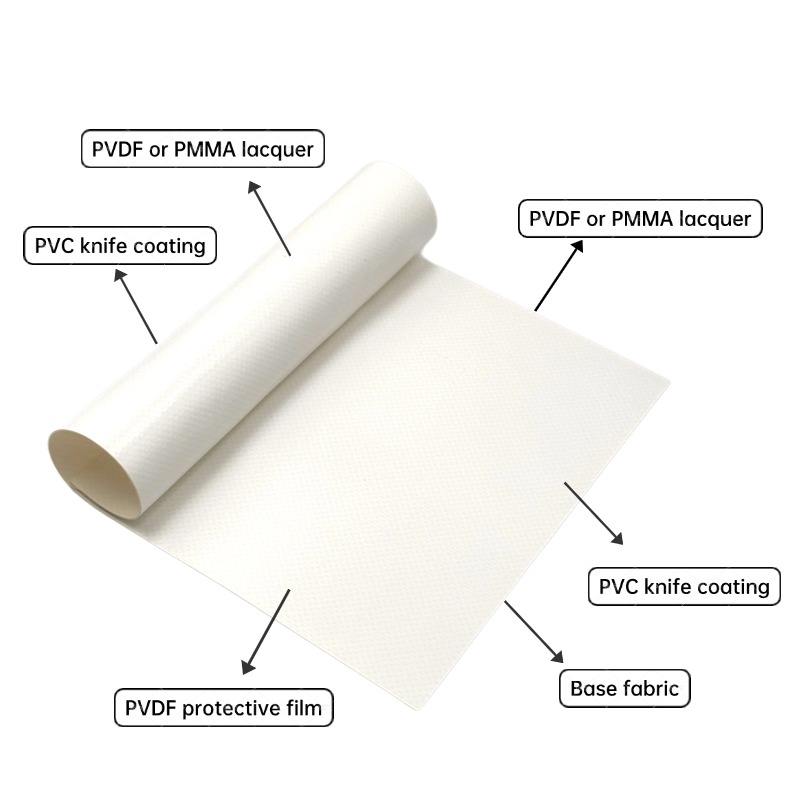

Base FabricPloyester
Surface TreatmentPVDF Shield
