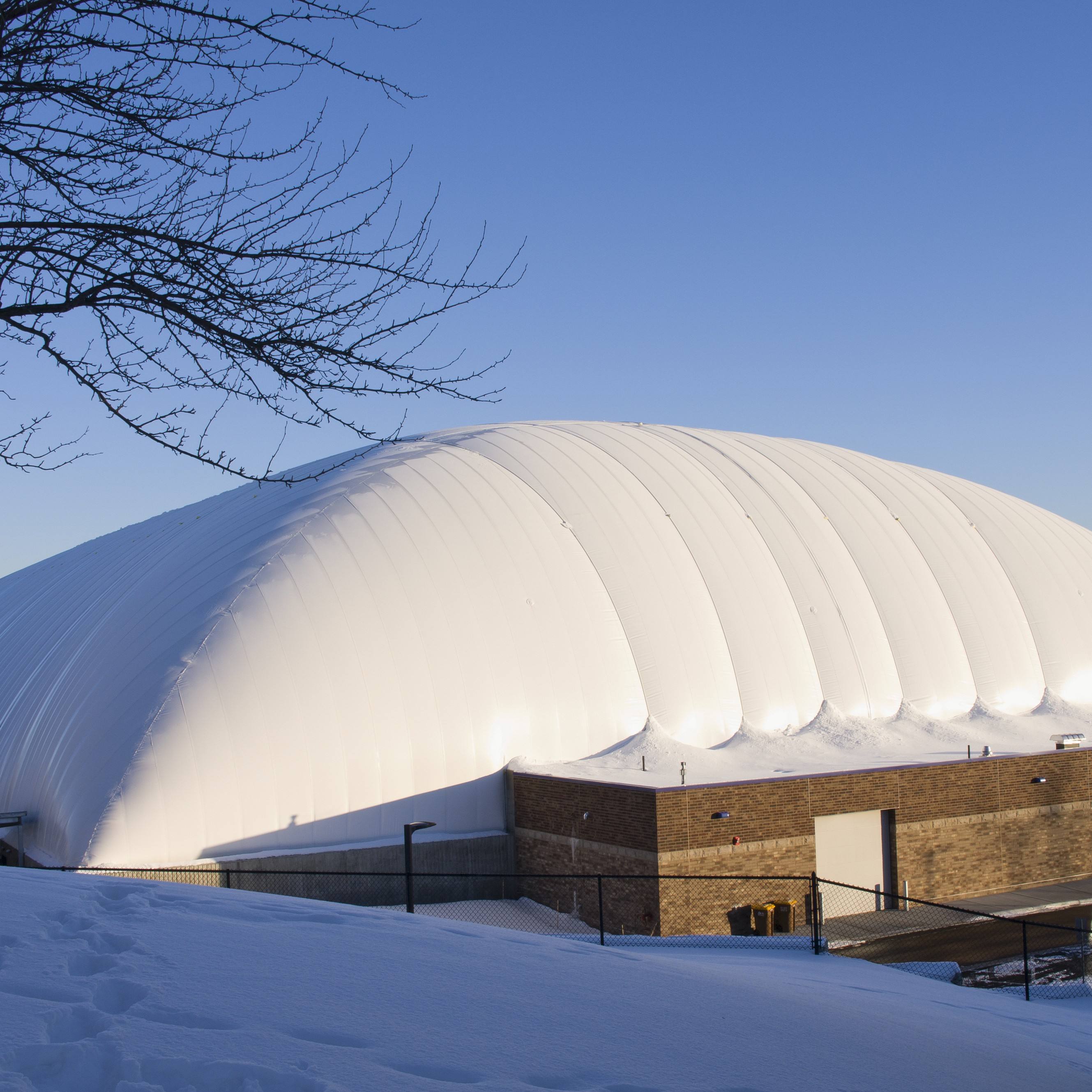

This air dome uses air pressure to support the membrane surface eliminating the need for beams and columns inside, thus easily achieving large-space constructions. Compared to traditional sports venues, pneumatic membrane structure have advantages such as lower construction costs, higher space utilization, simple maintenance, and the ability to be relocated multiple times. For fitness enthusiasts, the indoor venue offers protection from wind and sun, as well as insulation, meaning that exercising and playing sports no longer depend on the weather.

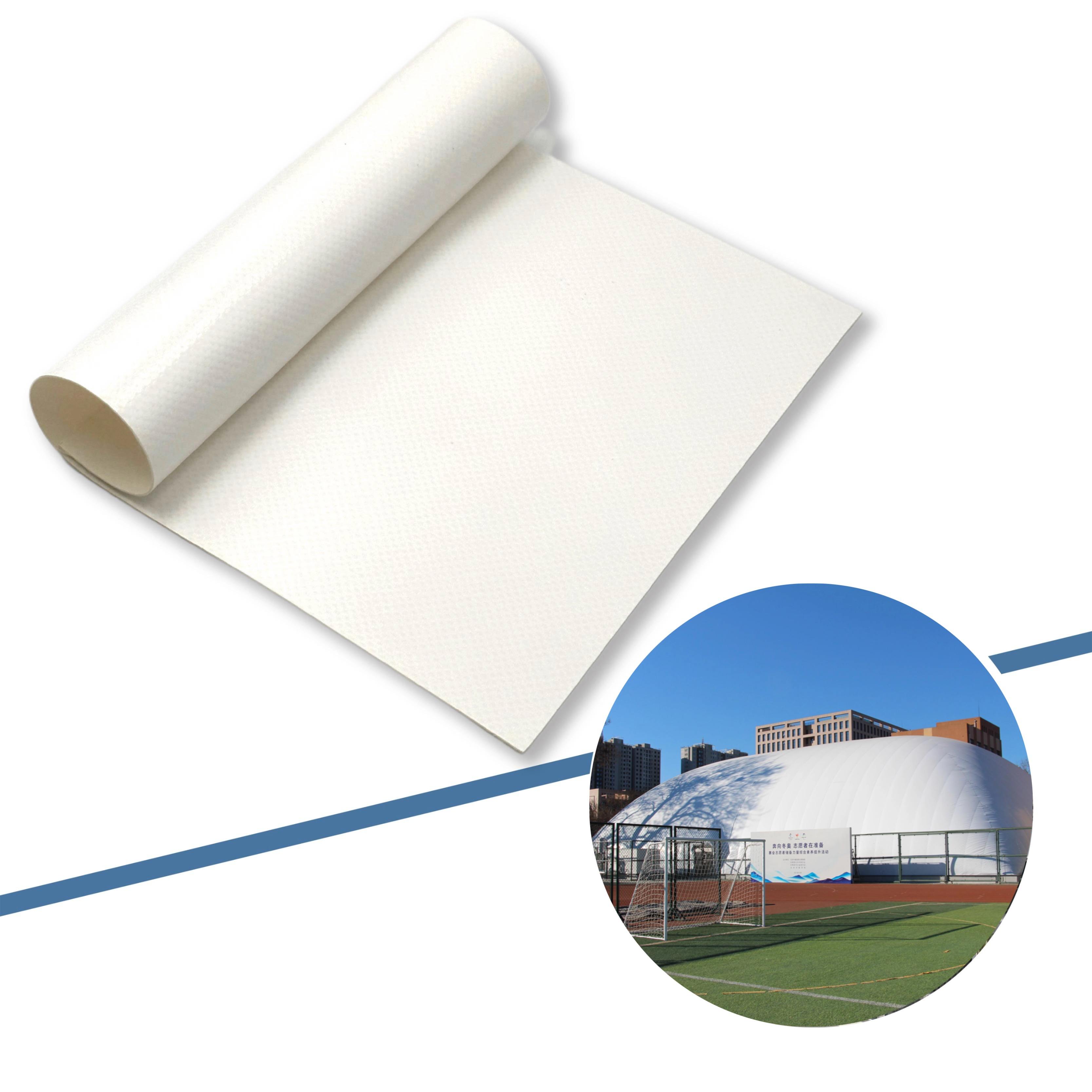

This air dome is made of durable, waterproof, and flame-resistant PVC tarpaulin, ensuring long-term use in various weather conditions. Certified by CE, it complies with EU safety standards, providing market access and regulatory assurance. The air dome is customizable in size, color, and logo, making it versatile for sports, events, and commercial uses.
| P6212FV Technical Data | |||
| Item | Unit | Date | Test Method |
| Width | m | 1.5 | ISO 22198 |
| Weight | g/㎡ | 1350±100 | DIN EN ISO 2286 |
| Thickness | mm | 1.05±0.08 | DIN EN ISO 2286 |
| Tensile | N/5cm | 6200/6000 | DIN 53354 |
| Tear | N | 800/800 | DIN EN 17679 |
| Adhesion | N/5cm | >120 | DIN 55543 |
| Transmissivity | % | 0/7±3 | FZ/T 01009 |
| FR | B1 | EN 13501-1 | |
| Temperature | ℃ | -30~+70 | in static position |
| Anti-wicking | mm | ≤20 | FZ/T 01071 |

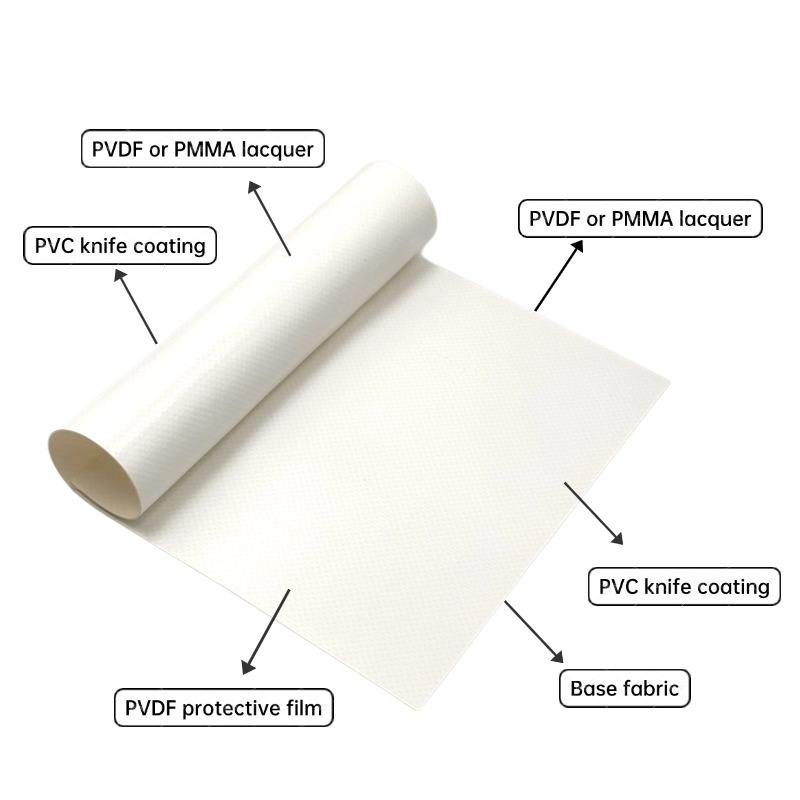

| Base Fabric | Ployester | ||
| Surface Treatment | PVF Shield | ||
