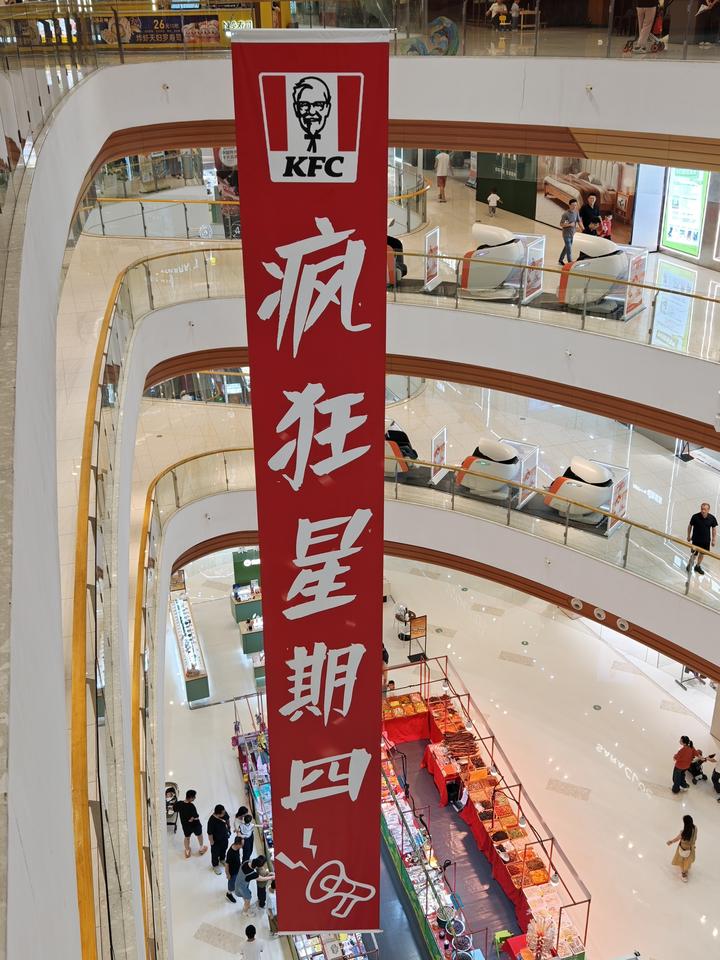

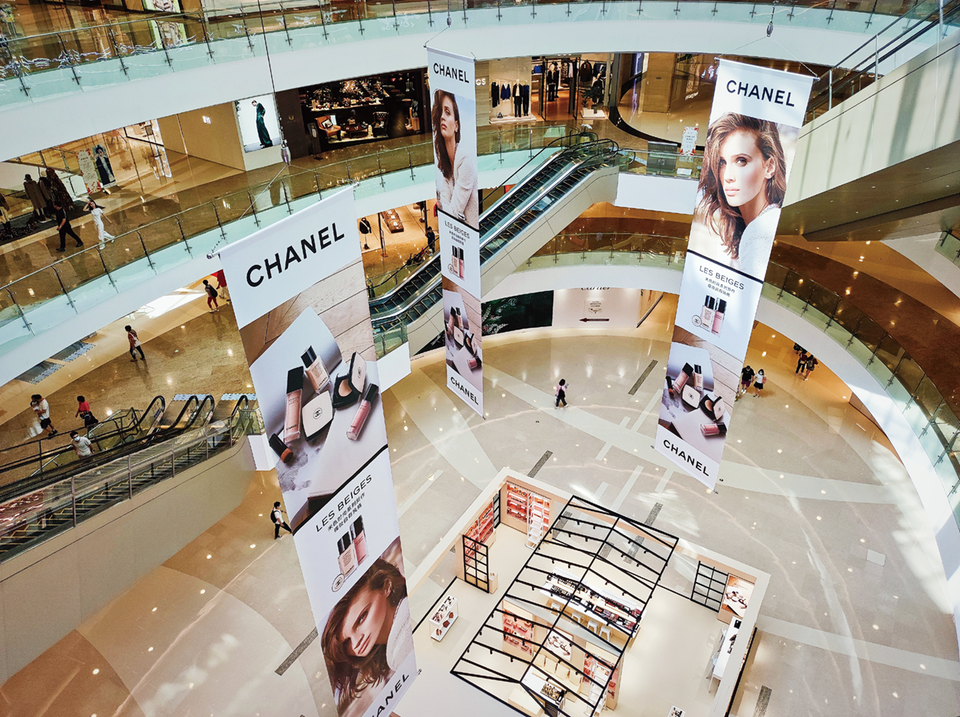

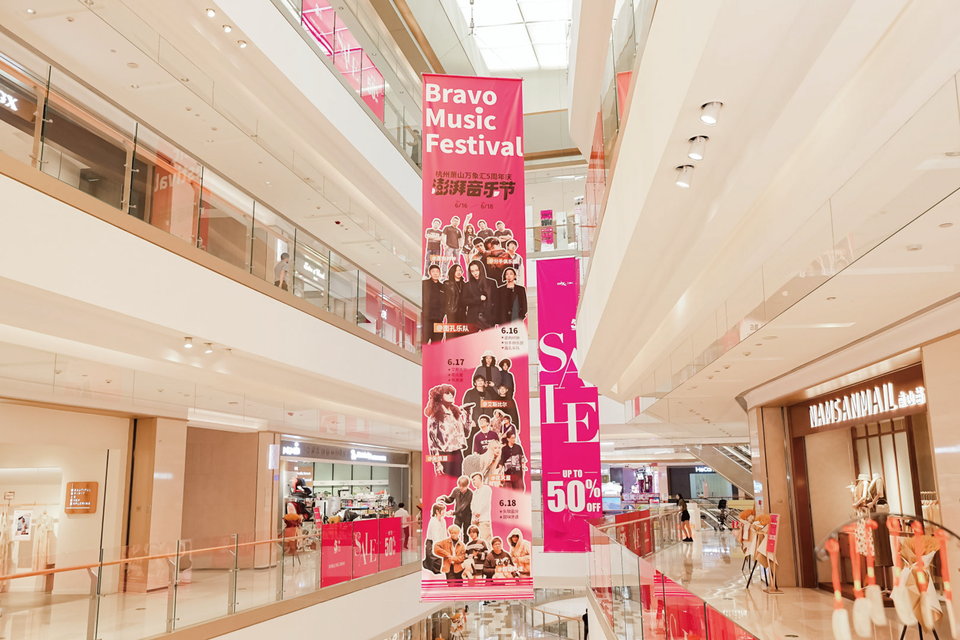

HD480-NC double side printable banner is an excellent No-Curling printing material. It has best Fire Resistant and super flat surface. Such advantages make it much more competitive at printing , handing performance, and FR rating than other DSP materials such as PET DS banner and PVC DS banner . The No-curling edge ability help the users easily to get the super flat and straight performance. The Material is quite popular in the European and American markets of shopping mall/airport/4S car center for handing banner and display stand use.
The product demonstrates excellent compatibility with various digital printing technologies, including Solvent, Eco-Solvent, UV, and Latex inks. This versatility ensures stable printing performance and consistent, high-quality results regardless of the printing system employed.
| HD480-NC Technical Data | |||
| Item | Unit | Data | Test method |
| Width | m | ≤3.2 | ISO 22198 |
| Weight | g/sqm | 480 | DIN EN ISO 2286 |
| Thickness | mm | 0.36±0.03 | DIN EN ISO 2286 |
| Tensile | N/5cm | ≥1000/≥800 | DIN 53354 |
| Tear | N | ≥70/≥50 | DIN 53363 |
| Adhesion | N/5cm | ≥15 | DIN 53357 |
| Transmissivity | % | 50 | X.rite 341C |
| Flame Resistance | B1/B2* | EN13501-1 | |
| Base Fabric | Fiberglass | ||
| Coating | PVC | ||
| Surface Treatment | Protecting Lacquer | ||
